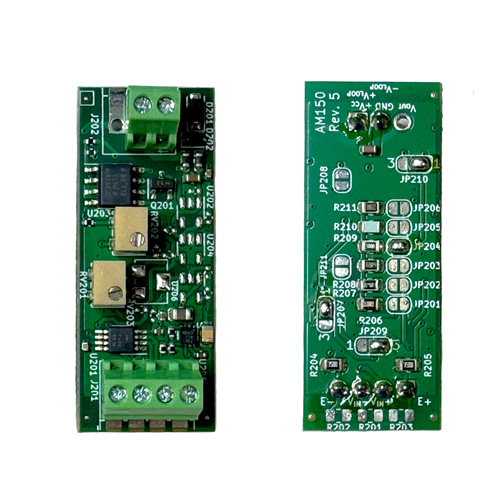

Signal converters are electronic boards designed to convert sensor output signals. GESTECNO provides a wide range of conversion units, including:

mV/V to 4–20 mA

mV/V to 0–5 V

mV/V to digital (RS485)

potentiometric to 4–20 mA

potentiometric to 0–5 V (or 0–10 V)

potentiometric to digital (RS485)

Pt100 to 4–20 mA

Pt100 to 0–5 V

Pt100 to digital (RS485)

120 Ω strain gauge to 4–20 mA

analog (4–20 mA or 0–5 V) to digital (RS485)

vibrating wire (Hz) to analog (0–20 mA or 0–5 V)

vibrating wire (Hz) to digital (RS485)

analog (mV/V, 4–20 mA or 0–5 V) to digital (RS485)

pulse input (rain gauge) to 4–20 mA (or 0–5 V)

All converters are equipped with reverse polarity protection and are housed in protective enclosures or waterproof junction boxes. The boards include onboard potentiometers for zero (OFFSET) and gain (SPAN) adjustment. Input and output terminal blocks are also provided to ensure quick and easy wiring.
